Stake2.0

Prerequisite: The DApp connection has been authorized via eth_requestAccounts (see Start Developing).

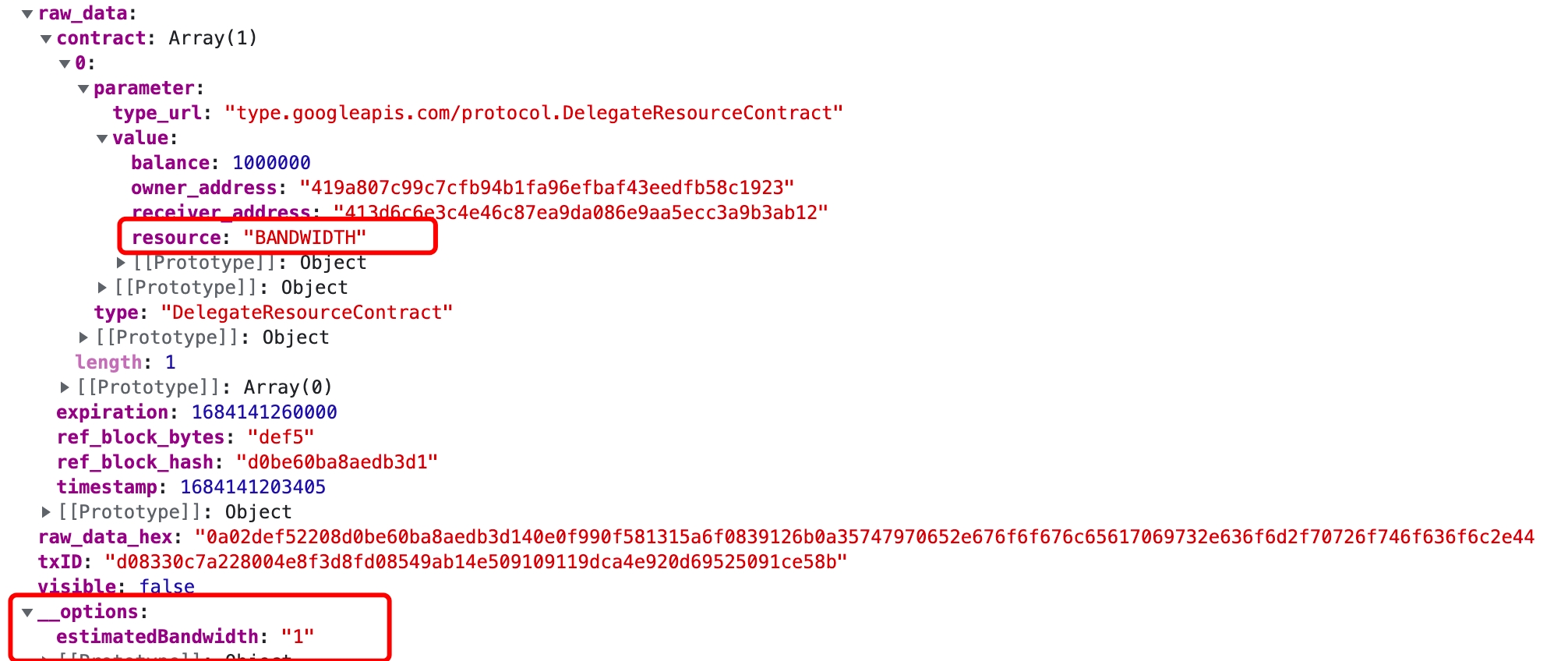

When a DApp asks TronLink to sign a DelegateResourceContract or UnDelegateResourceContract transaction, the signing popup shows the resource type and an estimated resource amount:

• Resource type — read from raw_data.contract[0].parameter.value.resource. tronWeb.transactionBuilder.delegateResource / undelegateResource already set this field to "ENERGY" for energy. For bandwidth the field is omitted (it is the protobuf default), and TronLink (4.1.4 and later) treats a missing value as "BANDWIDTH". You do not need to add it yourself.
• Estimated amount — read from a top-level __options object that you add to the transaction: estimatedBandwidth is the estimated bandwidth, estimatedEnergy is the estimated energy. Only the value matching the resource type is shown. If __options is missing, the popup shows 0; signing still works.

__options sits outside raw_data, so adding it does not change txID or raw_data_hex. In contrast, parameter.value.resource is part of the signed protocol data. Do not change it after building: a modified value no longer matches raw_data_hex / txID. trx.sign rejects such a transaction ('Invalid transaction provided'; extension 4.4.3 and later), and trx.multiSign recomputes txID from the modified data, so the signed transaction differs from the one you built. To change the resource type, rebuild the transaction.

For example:

// ENERGY — tronWeb sets parameter.value.resource = "ENERGY"
const energyTx = await tronWeb.transactionBuilder.delegateResource(10e6, 'receiverAddress', 'ENERGY', 'ownerAddress', false);
energyTx.__options = { estimatedEnergy: 1 }; // placeholder — calculate it as described below

// BANDWIDTH — resource is omitted and displayed as BANDWIDTH
const bandwidthTx = await tronWeb.transactionBuilder.delegateResource(10e6, 'receiverAddress', 'BANDWIDTH', 'ownerAddress', false);
bandwidthTx.__options = { estimatedBandwidth: 1 }; // placeholder — calculate it as described below

const signed = await tronWeb.trx.sign(energyTx);

undelegateResource transactions use the same __options fields.

The specific calculation logic of estimatedEnergy and estimatedBandwidth can be found in the last chapter of the "Stake 2.0 Adaptation FAQ": "How to convert resource share to amount?"

Errors

Error shape: On the TronLink-injected tronWeb (extension 4.0.0 and later), when the user rejects trx.sign, trx.multiSign, or trx.signMessageV2, the promise rejects with the plain string 'Confirmation declined by user' — not an Error object, and without a numeric code. The { code: 4001, message: 'User rejected the request.' } object is returned only by window.tron.request(...) methods such as eth_requestAccounts. Other failures (locked wallet, invalid payload, watch-only account) use other values — see Handling rejections. Do not automatically retry signing.

For cross-surface translation see the Error Code Map.
