DeepLink

DApp、H5 应用可以使用 DeepLink 方式拉起 TronLink App 进行打开钱包、登录、转账、签名交易、字符串签名、在钱包中打开 DApp 等操作。

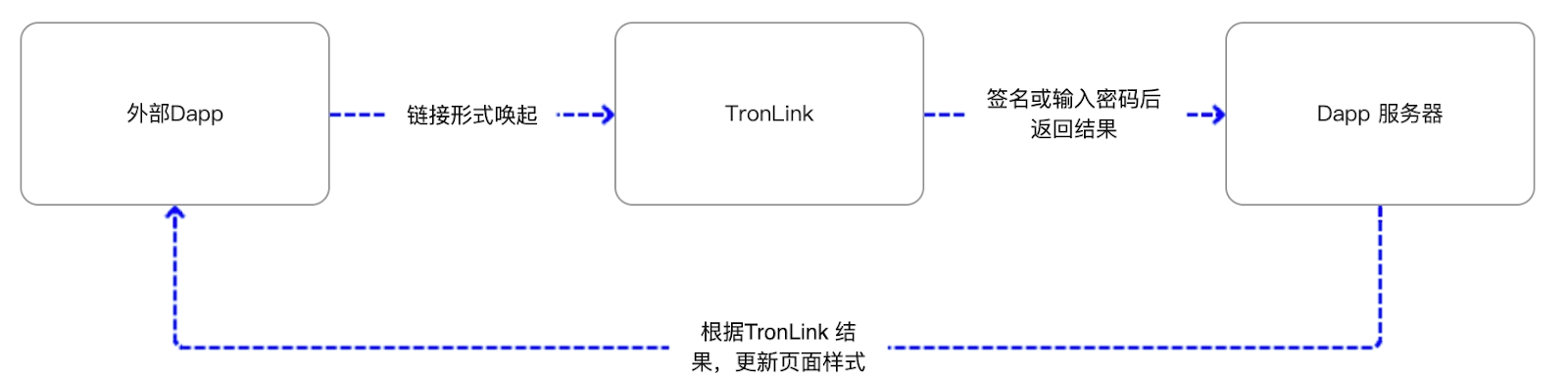

移动端 DeepLink 概览

下文每个操作中，tronlinkoutside://pull.activity?param={} 的 param 参数都是 JSON 格式的协议数据。注意：JSON 字符串放入链接前需要进行 urlencode 编码。

打开钱包

使用 DeepLink 方式唤起钱包。可用版本：TronLink v4.10.0 起。

<a href='tronlinkoutside://pull.activity?param={}'>Open Tronlink</a>

param（请求）：

{
  "action": "open",
  "protocol": "TronLink",
  "version": "1.0"
}

打开 DApp

使用 DeepLink 方式唤起钱包，并在 DApp 浏览器中打开 DApp。可用版本：TronLink v4.10.0 起。

<a href='tronlinkoutside://pull.activity?param={}'>Open DApp</a>

param（请求），url 为目标 DApp：

{
  "url": "https://www.tronlink.org/",
  "action": "open",
  "protocol": "TronLink",
  "version": "1.0"
}

登录授权

使用 DeepLink 方式唤起钱包，并在钱包中选择获取钱包地址。可用版本：TronLink v4.11.0 起。

<a href='tronlinkoutside://pull.activity?param={}'>Login/Request Address</a>

param（请求）：

{
  "url": "https://justlend.org/#/home",
  "callbackUrl": "https://your-backend.example.com/api/tron/v1/callback",
  "dappIcon": "https://your-dapp.example.com/icon.png",
  "dappName": "Test demo",
  "protocol": "TronLink",
  "version": "1.0",
  "chainId": "0x2b6653dc",
  "action": "login",
  "actionId": "e5471a9c-b0f1-418b-8634-3de60d68a288"
}

回调：

{
  "actionId": "e5471a9c-b0f1-418b-8634-3de60d68a288",
  "address": "TSPrmJetAMo6S6RxMd4tswzeRCFVegBNig",
  "code": 0,
  "id": 1780812177,
  "message": "success"
}

转账

使用 DeepLink 方式唤起 TronLink，并发送转账数据，在钱包中转账并广播。可用版本：TronLink v4.11.0 起。

<a href='tronlinkoutside://pull.activity?param={}'>Transfer</a>

param（请求）：

{
  "url": "https://justlend.org/#/home",
  "callbackUrl": "https://your-backend.example.com/api/tron/v1/callback",
  "dappIcon": "https://your-dapp.example.com/icon.png",
  "dappName": "Test demo",
  "protocol": "TronLink",
  "version": "1.0",
  "chainId": "0x2b6653dc",
  "memo": "Reward",
  "from": "TSPrmJetAMo6S6RxMd4tswzeRCFVegBNig",
  "to": "TXd9duqtcyyj4pBCKvXKNqmazxxDw5SdBa",
  "loginAddress": "TSPrmJetAMo6S6RxMd4tswzeRCFVegBNig",
  "tokenId": "0",
  "contract": "",
  "amount": "20",
  "action": "transfer",
  "actionId": "408170fc-7919-4459-be5e-05a9d4b4065e"
}

回调（actionId 与请求一致）：

{
  "actionId": "408170fc-7919-4459-be5e-05a9d4b4065e",
  "code": 0,
  "id": 1142367107,
  "message": "success",
  "transactionHash": "e8ffe9b92c771e66999732b810bf2493be389464191040d8666a26dc449fa5f0"
}

交易签名

可用版本：TronLink v4.11.0 起。

<a href='tronlinkoutside://pull.activity?param={}'>Sign transaction</a>

param（请求）：

{
  "url": "https://justlend.org/#/home",
  "callbackUrl": "https://your-backend.example.com/api/tron/v1/callback",
  "dappIcon": "https://your-dapp.example.com/icon.png",
  "dappName": "Test demo",
  "protocol": "TronLink",
  "version": "1.0",
  "chainId": "0x2b6653dc",
  "action": "sign",
  "loginAddress": "TSPrmJetAMo6S6RxMd4tswzeRCFVegBNig",
  "method": "transfer(address,uint256)",
  "signType": "signTransaction",
  "data": "{\"visible\":false,\"txID\":\"dcfaf2c2d75d91994f9a23623e905eaa7d74bc804fa5821640111ada3441376a\",\"raw_data\":{\"contract\":[{\"parameter\":{\"value\":{\"data\":\"a9059cbb000000000000000000000000ed87a3ae2bf2ab8b95486a23f224487ad75c60200000000000000000000000000000000000000000000000000000000000000014\",\"owner_address\":\"41b42b84bad413dde093e27d01bb02ed9eede52c43\",\"contract_address\":\"41eca9bc828a3005b9a3b909f2cc5c2a54794de05f\"},\"type_url\":\"type.googleapis.com/protocol.TriggerSmartContract\"},\"type\":\"TriggerSmartContract\"}],\"ref_block_bytes\":\"84e1\",\"ref_block_hash\":\"1731d6450e11a03f\",\"expiration\":1670168865000,\"fee_limit\":100000000,\"timestamp\":1670168805340},\"raw_data_hex\":\"0a0284e122081731d6450e11a03f40e8d1c9eecd305aae01081f12a9010a31747970652e676f6f676c65617069732e636f6d2f70726f746f636f6c2e54726967676572536d617274436f6e747261637412740a1541b42b84bad413dde093e27d01bb02ed9eede52c43121541eca9bc828a3005b9a3b909f2cc5c2a54794de05f2244a9059cbb000000000000000000000000ed87a3ae2bf2ab8b95486a23f224487ad75c6020000000000000000000000000000000000000000000000000000000000000001470dcffc5eecd30900180c2d72f\"}",
  "actionId": "64fcdb39-2cfa-47f2-85bd-d7e8409809ed"
}

回调（actionId 与请求一致）：

{
  "actionId": "64fcdb39-2cfa-47f2-85bd-d7e8409809ed",
  "code": 0,
  "id": -799302342,
  "message": "success",
  "successful": true,
  "transactionHash": "2fc49e560f648e5ecb455955d8778267ec1f257436425f62393b632c9a7a55ad"
}

消息签名

可用版本：TronLink v4.11.0 起。

<a href='tronlinkoutside://pull.activity?param={}'>Sign message</a>

param（请求）：

{
  "url": "https://justlend.org/#/home",
  "callbackUrl": "https://your-backend.example.com/api/tron/v1/callback",
  "dappIcon": "https://your-dapp.example.com/icon.png",
  "dappName": "Test demo",
  "protocol": "TronLink",
  "version": "1.0",
  "chainId": "0x2b6653dc",
  "loginAddress": "TSPrmJetAMo6S6RxMd4tswzeRCFVegBNig",
  "signType": "signStr",
  "message": "abc",
  "action": "sign",
  "actionId": "50554861-4861-41c4-adf3-abf36213f843"
}

回调：

{
  "actionId": "50554861-4861-41c4-adf3-abf36213f843",
  "code": 0,
  "id": 2001871012,
  "message": "success",
  "signedData": "0xffcac5731d9f70a58e5126f44c34b9356ccb9bef53331e33ddab84bb829adc1b77df24362348f8d46e506b489b4af4496600799b173e708faf1b9db99da9d13c1b"
}

回传消息码

注意：转账请求中 tokenId 与 contract 互斥，两者同时传入会返回消息码 10025。

消息码 消息 备注
0 success
10001 Incorrect JSON format
10002 Missing Action
10003 Unknown Action
10004 Missing ActionId
10005 Incorrect DApp URL format
10006 Incorrect CallbackUrl format
10007 Empty DApp name v1.0 可以为空
10008 Version number not supported
10009 Current network not supported
10010 The URL is not supported to open TronLink
10011 Unknown SignType
10012 Incorrect Transaction format
10013 Incorrect Method format
10014 Incorrect Message format
10015 Incorrect toAddress
10016 No wallet created in TronLink
10017 Incorrect fromAddress
10018 Incorrect contractAddress
10019 Incorrect chainId
10020 Incorrect amount
10021 The initiating address does not match the current wallet
10022 Incorrect loginAddress
10023 System contract not support
10024 Incorrect tokenId
10025 TokenId & Contract address should not exist together
300 Transaction canceled
301 Transaction executed in TronLink
302 Broadcast failure - returned with incorrect info
-1 Unknown reason

JSON Schema 参考

param 查询参数的值是一个 JSON 对象——URL-encode 之后，就是 整个 DeepLink 契约。下方 schema 遵循 JSON Schema Draft 7；投递到 callbackUrl 的回调结构按 action 分几种形态。

公共信封

每个 param 都共享这部分前缀：

{
  "type": "object",
  "required": ["action", "protocol", "version"],
  "properties": {
    "protocol":    { "type": "string", "const": "TronLink" },
    "version":     { "type": "string", "const": "1.0" },
    "action":      { "type": "string", "enum": ["open", "login", "transfer", "sign"] },
    "actionId":    { "type": "string", "description": "UUID v4——所有会产生回调的 action（login、transfer、sign）必填；回调会原样回带" },
    "url":         { "type": "string", "format": "uri", "description": "DApp URL——除“打开钱包”外所有 action 都必填" },
    "callbackUrl": { "type": "string", "format": "uri", "description": "接收 JSON 回调的 HTTPS 端点" },
    "dappName":    { "type": "string", "description": "审批界面上显示的 DApp 名称" },
    "dappIcon":    { "type": "string", "format": "uri", "description": "审批界面上显示的 DApp 图标 URI" },
    "chainId":     { "type": "string", "enum": ["0x2b6653dc", "0x94a9059e", "0xcd8690dc"], "description": "主网 / Shasta / Nile（大小写敏感的 hex）" }
  }
}

各 action 的 schema

打开钱包（无回调）：

{
  "type": "object",
  "required": ["action", "protocol", "version"],
  "properties": {
    "action":   { "const": "open" },
    "protocol": { "const": "TronLink" },
    "version":  { "const": "1.0" }
  }
}

在 DApp Explorer 中打开 DApp（无回调）：

{
  "type": "object",
  "required": ["action", "protocol", "version", "url"],
  "properties": {
    "action":   { "const": "open" },
    "protocol": { "const": "TronLink" },
    "version":  { "const": "1.0" },
    "url":      { "type": "string", "format": "uri" }
  }
}

登录 请求：

{
  "type": "object",
  "required": ["action", "actionId", "callbackUrl", "url", "protocol", "version"],
  "properties": {
    "action":      { "const": "login" },
    "actionId":    { "type": "string" },
    "url":         { "type": "string", "format": "uri" },
    "callbackUrl": { "type": "string", "format": "uri" },
    "dappName":    { "type": "string" },
    "dappIcon":    { "type": "string", "format": "uri" },
    "chainId":     { "type": "string" },
    "protocol":    { "const": "TronLink" },
    "version":     { "const": "1.0" }
  }
}

登录 回调：

{
  "type": "object",
  "required": ["actionId", "code", "id", "message"],
  "properties": {
    "actionId": { "type": "string" },
    "code":     { "type": "integer", "description": "0 = 成功；失败码见上方“回传消息码”表" },
    "id":       { "type": "integer", "description": "内部请求 id（用于调试，原样回传）" },
    "message":  { "type": "string" },
    "address":  { "type": "string", "description": "已授权的 TRON 地址（base58，T 开头）。仅在 code = 0 时出现。" }
  }
}

转账 请求——tokenId（TRX / TRC10）与 contract（TRC20）互斥；同时传入会返回 10025。不用的那个传 ""（空字符串）：

{
  "type": "object",
  "required": ["action", "actionId", "callbackUrl", "url", "from", "to", "loginAddress", "amount", "protocol", "version"],
  "properties": {
    "action":       { "const": "transfer" },
    "actionId":     { "type": "string" },
    "url":          { "type": "string", "format": "uri" },
    "callbackUrl":  { "type": "string", "format": "uri" },
    "from":         { "type": "string", "description": "发起方 TRON 地址（base58）" },
    "to":           { "type": "string", "description": "收款方 TRON 地址（base58）" },
    "loginAddress": { "type": "string", "description": "本次会话的授权地址——必须与当前钱包一致，否则返回 10021" },
    "tokenId":      { "type": "string", "description": "TRC10 token id，或 '0' 表示 TRX；发送 TRC20 时传 ''" },
    "contract":     { "type": "string", "description": "TRC20 合约地址；发送 TRX / TRC10 时传 ''" },
    "amount":       { "type": "string", "description": "人类单位的十进制字符串（如 '1.5'），App 内部处理 decimals" },
    "memo":         { "type": "string", "description": "可选交易备注" },
    "dappName":     { "type": "string" },
    "dappIcon":     { "type": "string", "format": "uri" },
    "chainId":      { "type": "string" },
    "protocol":     { "const": "TronLink" },
    "version":      { "const": "1.0" }
  }
}

转账 / 交易签名 回调：

{
  "type": "object",
  "required": ["actionId", "code", "id", "message"],
  "properties": {
    "actionId":        { "type": "string" },
    "code":            { "type": "integer" },
    "id":              { "type": "integer" },
    "message":         { "type": "string" },
    "successful":      { "type": "boolean", "description": "仅交易签名时出现，反映链上执行结果" },
    "transactionHash": { "type": "string", "description": "64 字符十六进制 tx id；广播成功时出现" }
  }
}

交易签名 请求——data 传一个已用 TronWeb 构建好的交易 JSON 字符串：

{
  "type": "object",
  "required": ["action", "actionId", "callbackUrl", "url", "loginAddress", "signType", "data", "protocol", "version"],
  "properties": {
    "action":       { "const": "sign" },
    "actionId":     { "type": "string" },
    "url":          { "type": "string", "format": "uri" },
    "callbackUrl":  { "type": "string", "format": "uri" },
    "loginAddress": { "type": "string" },
    "signType":     { "const": "signTransaction" },
    "method":       { "type": "string", "description": "可选的函数选择子，用于 UI 显示，例如 'transfer(address,uint256)'" },
    "data":         { "type": "string", "description": "TronWeb 交易的 JSON 字符串（raw_data、raw_data_hex、txID、visible）" },
    "dappName":     { "type": "string" },
    "dappIcon":     { "type": "string", "format": "uri" },
    "chainId":      { "type": "string" },
    "protocol":     { "const": "TronLink" },
    "version":      { "const": "1.0" }
  }
}

消息签名 请求——signType 决定摘要方式：

{
  "type": "object",
  "required": ["action", "actionId", "callbackUrl", "url", "loginAddress", "signType", "message", "protocol", "version"],
  "properties": {
    "action":       { "const": "sign" },
    "actionId":     { "type": "string" },
    "url":          { "type": "string", "format": "uri" },
    "callbackUrl":  { "type": "string", "format": "uri" },
    "loginAddress": { "type": "string" },
    "signType":     { "type": "string", "enum": ["signStr", "signTypedData"], "description": "signStr = signMessageV2（TIP-191）；signTypedData = TIP-712" },
    "message":      { "type": "string", "description": "纯文本或 hex（signStr） / JSON 字符串化的 typed-data domain+message（signTypedData）" },
    "dappName":     { "type": "string" },
    "dappIcon":     { "type": "string", "format": "uri" },
    "chainId":      { "type": "string" },
    "protocol":     { "const": "TronLink" },
    "version":      { "const": "1.0" }
  }
}

消息签名 回调：

{
  "type": "object",
  "required": ["actionId", "code", "id", "message"],
  "properties": {
    "actionId":   { "type": "string" },
    "code":       { "type": "integer" },
    "id":         { "type": "integer" },
    "message":    { "type": "string" },
    "signedData": { "type": "string", "description": "带 0x 前缀的十六进制签名；code = 0 时出现" }
  }
}

回调 code 枚举

完整取值见上方回传消息码表。请基于 code（integer）分支，不要解析 message（人类可读，可能会本地化）。
